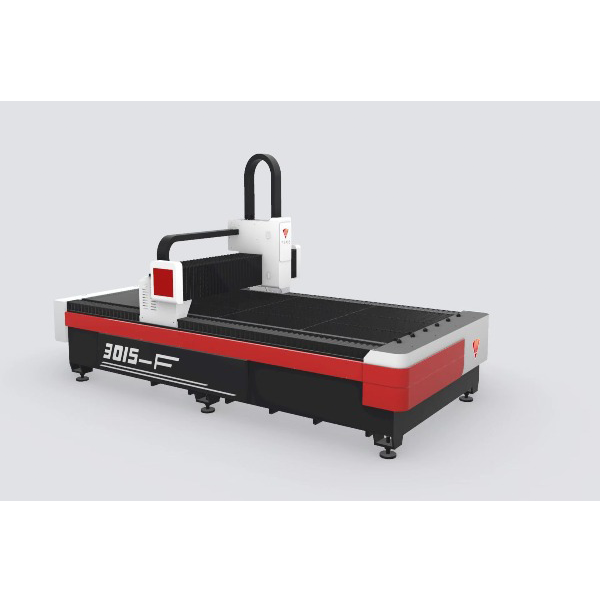

3015 Fiber Laser Cutting Machine

Revolutionizing the Welding Industry



OVERVIEW

Description:

3015 Fiber laser cutting machine is applicable to fast cutting on plates or tubes in metal, mainly for cutting on stainless steel, carbon steel, manganese steel, galvanized plate, alloy plate, rare metal, etc. It’s widely used in kitchen appliance, electric control box, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing industry and so on.



Product Feature:

  • Can be precise control, focusing light small, high-precision positioning, easy to ac hi eve automation. Can achieve some of the dissimilar materials between the welding.
  • Compared with other media laser equipment, optical drive focused spot smaller, more efficient and better processing quality.
  • Fast cutting speed, high stability and high elector-optical conversion efficiency.
  • Smooth and fine edge or surface and small distortion.
  • Low cost and low maintenance cost, without working gas lasers, optical transmission, a non-reflective lenses, can save a lot of maintenance costs.

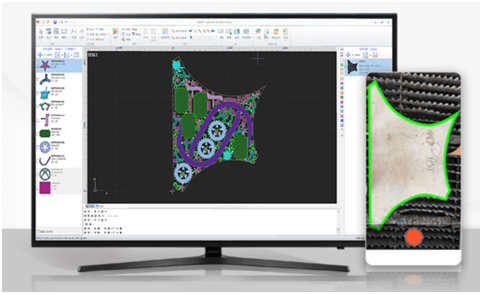

Cypcut control system Integrates advanced functions of drawing modification, quick nest, toolpath generation, analysis report and more

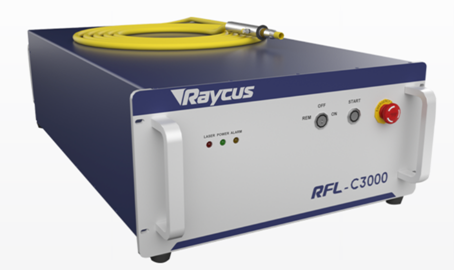

Raycus laser source Higher photoelectric conversion efficiency, More stable beam quality, Suitable for 24 hours continuous working

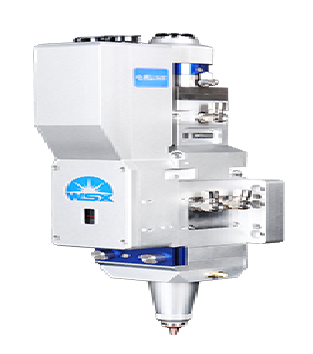

Two point alignment WSX laser head, protective mirror easy to replace，Applicable for all kinds of lasers with QBH fiber connect

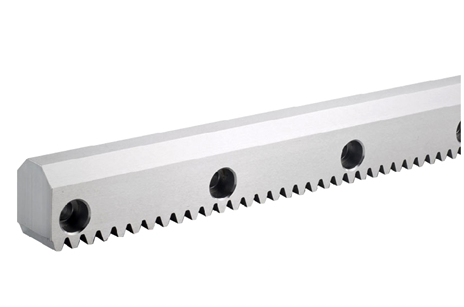

Taiwan YYC gear & Material: S50C Hardness: HRC 50-55°

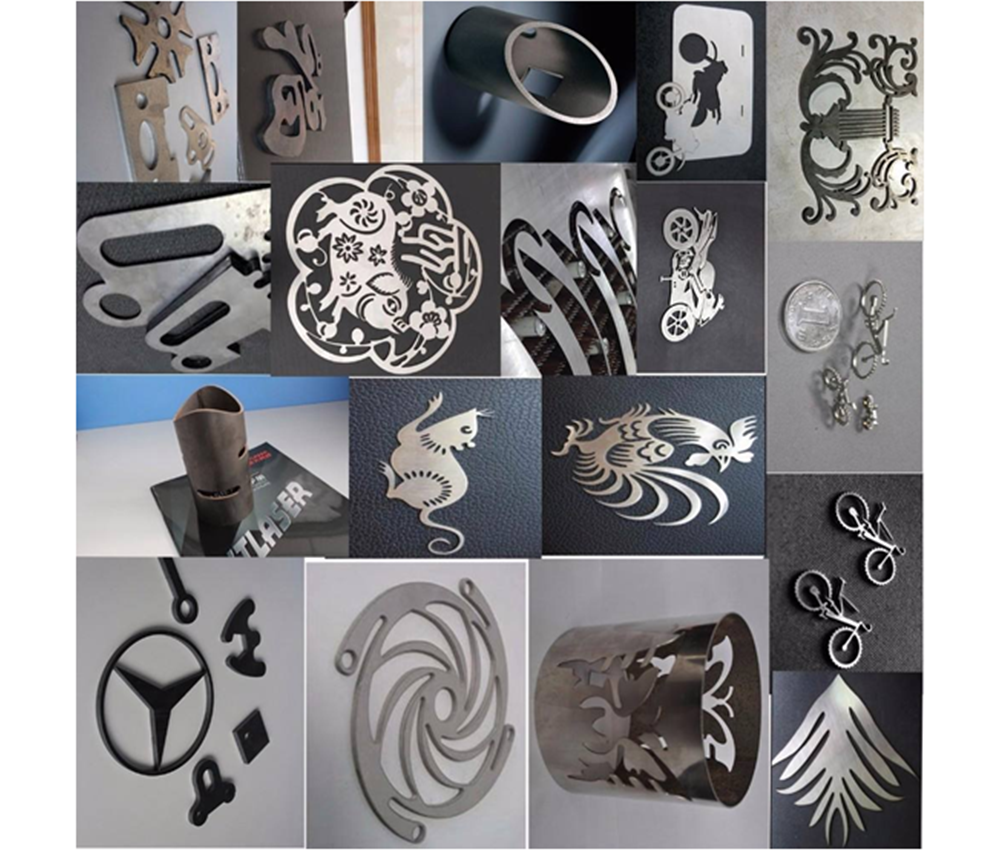

Cutting samples

Types of materials and processing methods that can be processed by fiber laser cutting machines

It can cut various metal plates and pipes, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, various alloy sheets, rare metals and other materials. Widely used in: kitchen appliances, sheet metal cabinets, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, various metal products, sheet metal cutting and other industries.



Model FSG3015-A/B/C
Power 500W/1000W/2000W
Laser source brand RAYCUS
Laser head brand WSX
Control system Cypcut
Cutting working area 3000*1500/4000*2000/6000*2000
Cooling mode Water cooling
Max linkage speed 100m/min
X.Y axis positional accuracy ±0.03mm/m
X.Y axis repeated location accuracy ±0.02mm/m
Z axis stroke 150mm
Machine color Support custom made
Guide rail Brand HIWIN
Cutting Speed 0-70000mm/s
Cutting Thickness 4mm-10mm, Depends on material
Reducer brand Japan Shimpo
Servo Motor Brand Yaskawa
Transmission system Taiwan YYC
Certifications CE / ISO
After sales service Video technical support, online support
Machinery test report Provided
Single gross weight 4.1T/5.2T/6.5T
Working voltage 380V/50Hz
